super-large supervisory control and data acquisition system "LUNASOLA" which controls the stable supply from LNG terminal to low pressure gas pipeline

Overview

The central supervisory control and data acquisition system (system name: LUNASOLA) is the system for monitoring and controlling our gas production and supply network extended in the Kinki whole place for 24 consecutive hours for 365 days. Supervising the state of gas supply facility by this system, and utilizing gas holders etc., Osaka Gas supplies city gas to our customers “safely and stably”.

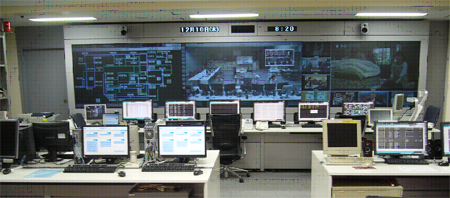

Overview image

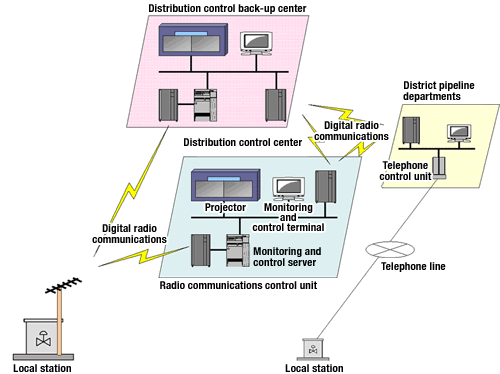

Configuration

The principal components of the system include the central system, the back-up control center system, and monitoring and control terminals in district pipeline departments.
Real-time monitoring and operation are carried out by cooperating these systems. And they are connected with private radio communication networks.
The two systems constantly and concurrently monitor the facilities. Control is assigned exclusively to either of the two centers.
They share control, control assignment, setting valves and other information.

Configuration image

Specification



System Supervisory and control server, Supervisory terminal, Communications control unit
Monitoring stations Approx. 3,300 stations
Monitoring points Approx. 90,000 points
Monitoring cycle Periodic (1 minute) / Event (Connections from the local station)
Communication system Own radio communications network / Analog public line



Conclusion

For the purpose of the integrated monitoring of the local station from high pressure to medium pressure B, the previous system began to be replaced to current system in 2009. (completed in 2011)
"LUNASOLA" is a registered trademark of Osaka Gas Co., Ltd.
